Configuration Data Utilities & Game Initialisation

As a professional practice of game development, we tend to separate all the configuration parameters used in the game in a centralised data management file, usually in .csv file thus we can tune the game directly in the separate data file.

Once again, we start with declaring an enum of data value names:

public enum ConfigDataValueName {
    VertSpeed,
    HoriSpeed,
    BuffFactor,
    BuffDuration,
    MinSpawnIntervalBuff,
    MaxSpawnIntervalBuff,
    MinSpawnIntervalObstacle,
    MaxSpawnIntervalObstacle,
    MinSpawnIntervalSoldier,
    MaxSpawnIntervalSoldier
}

After declaring the enumerations comes the main part where we create the ConfigData class for all the data manipulations. Firstly, we declare the variable to store the string of data path and declare the value dictionary:

private const string ConfigDataFileName = "ConfigData.csv";

private readonly Dictionary<ConfigDataValueName, float> _values =
    new Dictionary<ConfigDataValueName, float>();

Then we declare all the public properties to be utilised elsewhere:

// using expression-body style
public float VertSpeed                => _values[ConfigDataValueName.VertSpeed];
public float HoriSpeed                => _values[ConfigDataValueName.HoriSpeed];
public float BuffFactor               => _values[ConfigDataValueName.BuffFactor];
public float BuffDuration             => _values[ConfigDataValueName.BuffDuration];
public float MinSpawnIntervalBuff     => _values[ConfigDataValueName.MinSpawnIntervalBuff];
public float MaxSpawnIntervalBuff     => _values[ConfigDataValueName.MaxSpawnIntervalBuff];
public float MinSpawnIntervalObstacle => _values[ConfigDataValueName.MinSpawnIntervalObstacle];
public float MaxSpawnIntervalObstacle => _values[ConfigDataValueName.MaxSpawnIntervalObstacle];
public float MinSpawnIntervalSoldier  => _values[ConfigDataValueName.MinSpawnIntervalSoldier];
public float MaxSpawnIntervalSoldier  => _values[ConfigDataValueName.MaxSpawnIntervalSoldier];

After that, we define the main functionality of stream reading. The function should read configuration data from a file. If the file read fails, the object should contain default values for the configuration data. After reading the data, always remember to close the input file and check if the input is null. If we close a file that has never been opened, we will get a NullReferenceException.

public ConfigData() {
    StreamReader input = null;

    try {
        // create stream reader object
        input = File.OpenText(Path.Combine(
            Application.streamingAssetsPath, ConfigDataFileName));

        // populate in names and values
        string currentLine = input.ReadLine();
        while (currentLine != null) {
            string[] tokens = currentLine.Split(',');
            ConfigDataValueName valueName = (ConfigDataValueName)Enum.Parse(
                typeof(ConfigDataValueName), tokens[0]);
            _values.Add(valueName, float.Parse(tokens[1]));
            currentLine = input.ReadLine();
        }
    } catch (Exception e) {
        Console.WriteLine(e);

        // set default values if something went wrong
        SetDefaultValues();
    } finally {
        // if close a file that never even opened, will get NullReferenceException
        if (input != null) {
            input.Close();
        }
    }
}

Warning

Beware that the Application.streamingAssetsPath variable corresponds to a certain directory StreamingAssets for the convenience to deduct redundant hard-coding. However, the .cvs file has to be in this directory or otherwise, will trigger the exception.

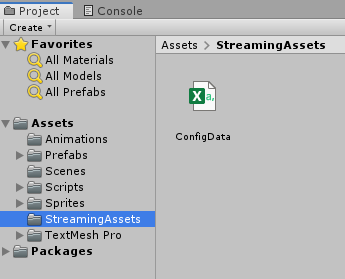

screenshots of streaming assets path in unity

As a fallback plan if the stream reading fails, we should always declare default values:

private void SetDefaultValues() {
    _values.Clear();
    _values.Add(ConfigDataValueName.VertSpeed,                10.0f);
    _values.Add(ConfigDataValueName.HoriSpeed,                0.2f);
    _values.Add(ConfigDataValueName.BuffFactor,               3.0f);
    _values.Add(ConfigDataValueName.BuffDuration,             4.0f);
    _values.Add(ConfigDataValueName.MinSpawnIntervalBuff,     8.0f);
    _values.Add(ConfigDataValueName.MaxSpawnIntervalBuff,     12.0f);
    _values.Add(ConfigDataValueName.MinSpawnIntervalObstacle, 1.25f);
    _values.Add(ConfigDataValueName.MaxSpawnIntervalObstacle, 1.75f);
    _values.Add(ConfigDataValueName.MinSpawnIntervalSoldier,  12.0f);
    _values.Add(ConfigDataValueName.MaxSpawnIntervalSoldier,  20.0f);
}

After declaring the ConfigData class, we declare a ConfigUtils utility class to declare static variables of each of the parameters, Since these are utility classes we don’t need to inherit from the MonoBehaviour unity class as we don’t want to attach the class to game objects to instantiate it. We just want consumers to access the class directly.

public class ConfigUtils {
    private static ConfigData _configData;

    // using expression-body style
    public static float VertSpeed                => _configData.VertSpeed;
    public static float HoriSpeed                => _configData.HoriSpeed;
    public static float BuffFactor               => _configData.BuffFactor;
    public static float BuffDuration             => _configData.BuffDuration;
    public static float MinSpawnIntervalBuff     => _configData.MinSpawnIntervalBuff;
    public static float MaxSpawnIntervalBuff     => _configData.MaxSpawnIntervalBuff;
    public static float MinSpawnIntervalObstacle => _configData.MinSpawnIntervalObstacle;
    public static float MaxSpawnIntervalObstacle => _configData.MaxSpawnIntervalObstacle;
    public static float MinSpawnIntervalSoldier  => _configData.MinSpawnIntervalSoldier;
    public static float MaxSpawnIntervalSoldier  => _configData.MaxSpawnIntervalSoldier;

    // Initialise the config utils, run the initialisation in GameInitializer.cs
    public static void Initialize() {
        _configData = new ConfigData();
    }
}

Eventually, we call the Initialize() method in GameInitializer class where all the functionalities including EventManager functionalities from the previous section initialise for the current game session. The GameInitializer class should be the first script attached to the Main Camera in the Gamplay Scene:

public class GameInitializer : MonoBehaviour {
    // Awake is called before Start
    void Awake() {
        // initialise the screen utils
        ScreenUtils.Initialize();

        // initialise the config utils
        // Beware: build on phone device has problem reading streaming assets
        ConfigUtils.Initialize();

        // initialise all event handling functionality
        EventManager.Initialize();
    }
}

Warning

Note that the phone build has problems with streaming assets reading functionalities, thus we just use the default values for phone builds.
